Pro Clima Tescon Vana Patch

100 Year Airtightness Tested ISO 16000
Stock code: PCTVP-25 MPN: 1AR02206

Pro Clima Tescon Vana Patch

Airtight adhesive patch for interior and exterior use

Tescon Vana Patch – 25 pack
£21.60

Excl. 20% VAT

£0.86 per unit

Special Order: Estimated dispatch: 3rd – 10th Sep
  • Product Overview
  • Technical Details
  • Downloads
  • Installation guide

Product Overview

Find a stockist Find an installer

To repair holes or damage on air and windtight membranes, airtight panels and racking boards. Also to seal cored holes in panels where blown-in insulation has been used.

Internal or external membranes, smooth timber, planed or painted timber, plastic, metal, and wood-based panels or boards. Also sticks to wood fibre insulation boards and smooth plaster or concrete surfaces when Tescon Sprimer or Tescon RP is used first.

Overview

Pro Clima Tescon Vana Patch is a robust self-adhesive patch for airtight sealing of holes and damaged areas in internal or external membranes, wood-based boards and Woodfibre insulation that has been primed with Tescon Sprimer or Tescon Primer RP. It is made from Tescon Vana tape that has been independently tested by Kassel University to prove, via accelerated aging techniques, that it will remain airtight for 100 years. The Patch is an ideal size for sealing over core holes in wood-based panels where blown-in insulation is being installed.

Where to use it

Tescon Vana Patch will permanently stick to any Pro Clima internal, or external membrane and other membranes made from PE, PA, PP, PET and aluminium. It will also permanently bond to planed or painted timber, OSB, plywood, MDF, plastics and metal.

For permanent adhesion on wood fibre insulation boards, concrete, plaster or smooth masonry, Tescon Sprimer or Tescon Primer RP should be used first to stabilise the surface. On surfaces that are painted or may come away, detach or delaminate, we recommend doing an adhesion test first.

What it does

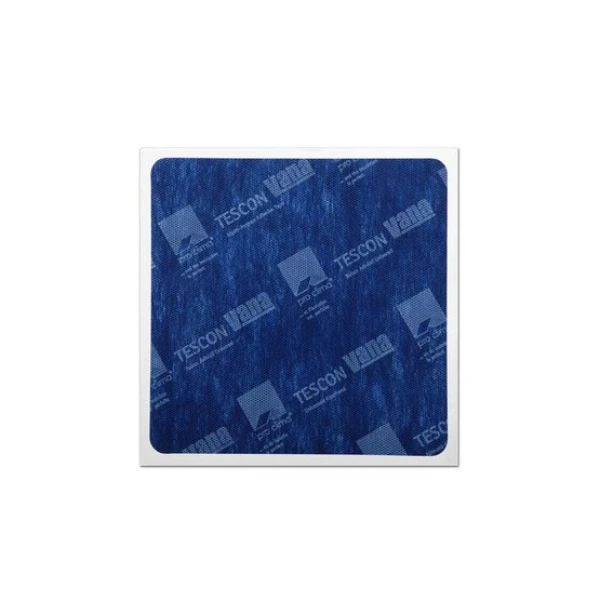

Tescon Vana Patch is a robust airtight adhesive patch for sealing over holes and damaged areas on airtight membranes and boards. Being quick to install, it instantly repairs accidental punctures and tears in membranes that can occur during construction. The patch is made from 180mm square Tescon Vana airtight tape.

How it works

Tescon Vana Patch uses fully water-resistant solid acrylic glue that is unaffected by changes in temperature and humidity. It has high adhesion and excellent cohesion which means the glue holds together, won't slip and can provide the longest-lasting seal possible. Lower quality patches use dispersion glue which reacts with moisture to cause the adhesive to break down relatively quickly (within a few months).

Why we love it

Tescon Vana Patch, with its solid acrylic glue activated by using a Pressfix tool, gets stronger over time. This makes it an ideal adhesive for construction projects in wet climates and extreme weather conditions like those in the UK and Ireland. After 24 hours, you will no longer be able to remove the patch.

It makes repairing holes through which fibrous insulation was blown into walls and roofs much easier. It is also a very convenient patch for covering and sealing airtight any tears, scrapes and punctures in airtight membranes that might occur during construction.

Tescon Vana has been independently tested and proven to remain airtight for 100 years, by Kassel University, using accelerated aging techniques. Only Pro Clima have achieved this level of durability.

Tescon Vana is also Passivhaus certified as part of the Intello Plus airtightness system.

  • Quick and easy to use patch repair
  • Water-resistant solid acrylic adhesive

  • Instant airtight seal over holes and damaged airtight materials
  • Ideal size for covering and sealing the holes through which fibrous insulation is installed into airtight boards and panels
  • Solid acrylic glue ensures reliable adhesion even if moisture is present
  • Can be exposed to the weather and UV for up to 6 months to provide more flexibility during external construction works

Questions

There are currently no questions and answers published for this product

Ask A Question

Technical Details

Key Technical Data

Externally, Internally
Cross Laminated Timber (CLT), Metal frame, Prefabricated (off-site manufactured) timber frame, Timber frame
Airtight for 100 years (Kassel University independent testing)
Ceilings, Roofs, Suspended timber floors, Walls (timber frame), Walls with closed timber cladding (no gaps)
Aluminium, Aluminium / foil membranes, Chipboard, Hard plastics, MDF, Metal, OSB, PE, PA, PP, PET and foil membranes, Painted timber, Plywood, Pro Clima membranes, Smooth planed timber
Dust producing surfaces, Gypsum plaster, Lime plaster, Rough/uneven surfaces, Smooth cement (plaster or render), Smooth concrete, Surfaces that may come-away or delaminate, Wood fibre rigid insulation boards
Silicone coated paper
180 mm
180 mm
10 years (when correctly installed with Pro Clima system products only)
0.4 m
-10° C (on frost-free substrates only)
Polypropylene (PP) microfibre fleece
Water resistant solid acrylic
6 months
Cable penetrations, Membrane edges and overlaps, Pipe penetrations (can't access end of pipe), Roof eaves, Roof hips (corners), Roof ridges, Roof valleys, Roof verges, Window heads
Dark blue
-40 °C to 90 °C
Airtightness, Wind/Weatherproofing

Technical Datasheet

  • Download

Material Safety Datasheet (MSDS)

  • Download

Installation Guide

  • Download

Installation Guide

Find an installer

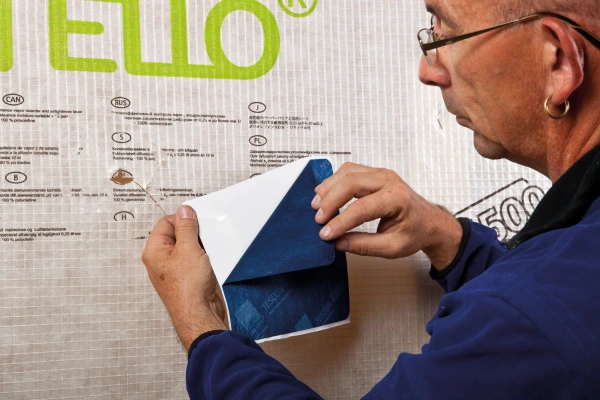

The release paper can be easily removed using your finger. Position the tape over the hole or damaged area with both hands.

Remove the release paper
Remove the release paper

Ensure that the adhesive backing is stuck to at least 2cm of solid/undamaged surface all around the hole/damaged area.

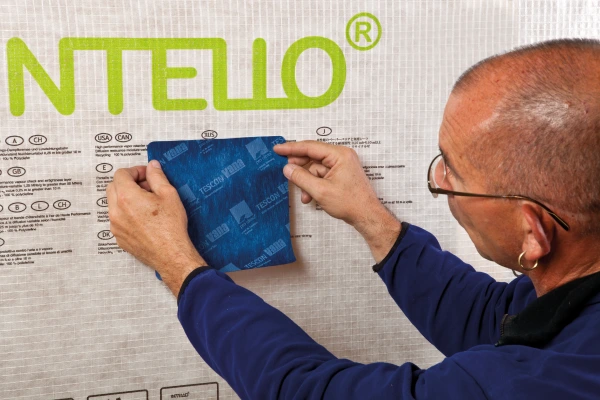

Position the Tescon Vana Patch over the hole or damaged area
Position the Tescon Vana Patch over the hole or damaged area

Make sure that when sticking the patch no folds or creases occur. Firmly press the patch onto the surface with a Pressfix tool. This ensures the maximum strength of bond can be achieved.

Make sure no folds or creases occur
Make sure no folds or creases occur
