Retro EcoWall A1 is a fire-safe high-performance internal wall insulation system designed to improve thermal comfort while maintaining full breathability and moisture safety. Retro EcoWall A1 is suitable for use on external solid masonry walls, window reveals, soffits, and at internal wall junctions on internal walls to reduce thermal bridging. It offers a stable, breathable solution for retrofit projects seeking improved energy performance without compromising the health of the building fabric.
The Diathonite Thermactive.037 levels the wall and provides a flat surface for the Clima Redboard Pro boards to be fully bonded with Redstone Clima Redboard Pro adhesive mortar. By eliminating all air gaps or voids, (interstitial) condensation cannot form within the build-up and a more reliable thermal performance across the whole surface can be achieved. Clima Redboard Pro and Diathonite Thermactive.037 both buffer moisture; they absorb and redistribute it as conditions change, which helps maintain a stable internal climate and reduces the likelihood of damp or mould.
Retro EcoWall A1 provides flexible thermal performance depending on the chosen combination of board thicknesses and Diathonite Thermactive.037 plaster. Options range from a slim build-up to deeper, higher-performing assemblies that achieve U-values as low as 0.30 W/m²K. The final system is finished with Redstone smooth finishing plaster (Luno) and natural breathable paint, creating a durable, smooth, and fully vapour-open internal surface.
Retro EcoWall A1 combines A1 fire-rated Redstone insulation boards with Diathonite Thermactive.037 to create a breathable, capillary-active system for solid masonry walls. It balances moisture control and fire safety with improved thermal comfort.
Key Benefits
A1 Fire-Safe Construction
Euroclass A1 materials suitable for high-rise and strict fire regimes.
Fully Breathable System
Vapour-open build-up prevents trapped moisture and condensation.
Exceptional Moisture Buffering
Capillary action absorbs and releases moisture safely.
Ideal for Solid Masonry
Perfect for stone, brick and heritage buildings.
Full-Contact Installation
Adhesive bond removes voids and reduces cold spots.
Flexible Thermal Performance
U-values from 0.30–0.70 W/m²K to suit projects.
Healthy Mineral Materials
Alkaline, mould-resistant and free from harmful pollutants.
Long-Lasting and Robust
Durable mineral system ensures stable thermal performance.

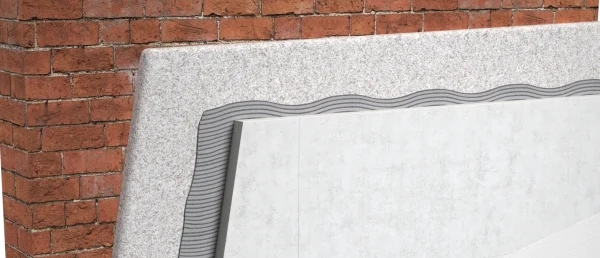

Retro EcoWall® A1 is compatible with solid brick or stone walls
Existing Brick Wall
20mm Diasen Diathonite Thermactive.037 Lime and cork based insulating plaster
Redstone Clima Redboard Pro Adhesive Mortar Adhesive mortar for use on Clima Redboard Pro
30mm Redstone Clima Redboard Pro Interior calcium silicate thermal insulation, mould prevention and moisture control board
Redstone Clima Redboard Pro Smooth Finishing Plaster for use on Clima Redboard Pro boards with embedded reinforcing mesh
Auro Natural Breathable Paint
A space-saving A1-rated internal insulation solution for minimal build-up requirements. High-performance internal wall insulation system designed to improve thermal comfort while maintaining full breathability and moisture safety. It is suitable for use on external solid masonry walls, window reveals, soffits, and at internal wall junctions on internal walls to reduce thermal bridging. It offers a stable, breathable and fire-safe solution for retrofit projects seeking improved energy performance without compromising the health of the building fabric.
- Existing Brick Wall
- 20mm Diasen Diathonite Thermactive.037
- Redstone Clima Redboard Pro Adhesive Mortar
- 30mm Redstone Clima Redboard Pro Calcium Silicate board
- Redstone Clima Redboard Pro Smooth Finishing Plaster (Luno) with embedded Reinforcing Mesh
- Auro Natural Breathable Paint

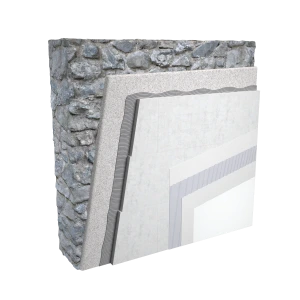

Existing Stone Wall
20mm Diasen Diathonite Thermactive.037 Lime and cork based insulating plaster
Redstone Clima Redboard Pro Adhesive Mortar Adhesive mortar for use on Clima Redboard Pro
30mm Redstone Clima Redboard Pro Interior calcium silicate thermal insulation, mould prevention and moisture control board
Redstone Clima Redboard Pro Smooth Finishing Plaster for use on Clima Redboard Pro boards with embedded reinforcing mesh
Auro Natural Breathable Paint
A space-saving A1-rated internal insulation solution for minimal build-up requirements. A space-saving A1-rated internal insulation solution for minimal build-up requirements. High-performance internal wall insulation system designed to improve thermal comfort while maintaining full breathability and moisture safety. It is suitable for use on external solid masonry walls, window reveals, soffits, and at internal wall junctions on internal walls to reduce thermal bridging. It offers a stable, breathable and fire-safe solution for retrofit projects seeking improved energy performance without compromising the health of the building fabric.
- Existing Stone Wall
- 20mm Diasen Diathonite Thermactive.037
- Redstone Clima Redboard Pro Adhesive Mortar
- 30mm Redstone Clima Redboard Pro Calcium Silicate board
- Redstone Clima Redboard Pro Smooth Finishing Plaster (Luno) with embedded Reinforcing Mesh
- Auro Natural Breathable Paint
Existing Brick Wall
25mm Diasen Diathonite Thermactive.037 Lime and cork based insulating plaster
Redstone Clima Redboard Pro Adhesive Mortar Adhesive mortar for use on Clima Redboard Pro
50mm Redstone Clima Redboard Pro Interior calcium silicate thermal insulation, mould prevention and moisture control board
Redstone Clima Redboard Pro Adhesive Mortar Adhesive mortar for use on Clima Redboard Pro
50mm Redstone Clima Redboard Pro Interior calcium silicate thermal insulation, mould prevention and moisture control board
Redstone Clima Redboard Pro Smooth Finishing Plaster for use on Clima Redboard Pro boards with embedded reinforcing mesh
Auro Natural Breathable Paint
A balanced A1-rated system delivering strong thermal performance with reduced build-up thickness. A space-saving A1-rated internal insulation solution for minimal build-up requirements. High-performance internal wall insulation system designed to improve thermal comfort while maintaining full breathability and moisture safety. It is suitable for use on external solid masonry walls, window reveals, soffits, and at internal wall junctions on internal walls to reduce thermal bridging. It offers a stable, breathable and fire-safe solution for retrofit projects seeking improved energy performance without compromising the health of the building fabric.
- Existing Brick Wall
- 25mm Diasen Diathonite Thermactive.037
- Redstone Clima Redboard Pro Adhesive Mortar
- 50mm Redstone Clima Redboard Pro Calcium Silicate Board
- Redstone Clima Redboard Pro Adhesive Mortar
- 50mm Redstone Clima Redboard Pro Calcium Silicate Board
- Redstone Clima Redboard Pro Smooth Finishing Plaster (Luno) with embedded Reinforcing Mesh
- Auro Natural Breathable Paint

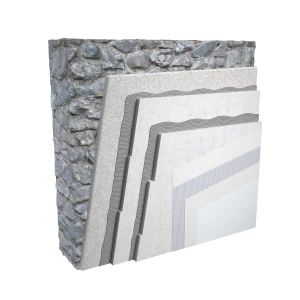

Existing Stone Wall
25mm Diasen Diathonite Thermactive.037 Lime and cork based insulating plaster
Redstone Clima Redboard Pro Adhesive Mortar Adhesive mortar for use on Clima Redboard Pro
50mm Redstone Clima Redboard Pro Interior calcium silicate thermal insulation, mould prevention and moisture control board
Redstone Clima Redboard Pro Adhesive Mortar Adhesive mortar for use on Clima Redboard Pro
50mm Redstone Clima Redboard Pro Interior calcium silicate thermal insulation, mould prevention and moisture control board
Redstone Clima Redboard Pro Smooth Finishing Plaster for use on Clima Redboard Pro boards with embedded reinforcing mesh
Auro Natural Breathable Paint
A balanced A1-rated system delivering strong thermal performance with reduced build-up thickness. A space-saving A1-rated internal insulation solution for minimal build-up requirements. High-performance internal wall insulation system designed to improve thermal comfort while maintaining full breathability and moisture safety. It is suitable for use on external solid masonry walls, window reveals, soffits, and at internal wall junctions on internal walls to reduce thermal bridging. It offers a stable, breathable and fire-safe solution for retrofit projects seeking improved energy performance without compromising the health of the building fabric.
- Existing Stone Wall
- 25mm Diasen Diathonite Thermactive.037
- Redstone Clima Redboard Pro Adhesive Mortar
- 50mm Redstone Clima Redboard Pro Calcium Silicate Board
- Redstone Clima Redboard Pro Adhesive Mortar
- 50mm Redstone Clima Redboard Pro Calcium Silicate Board
- Redstone Clima Redboard Pro Smooth Finishing Plaster (Luno) with embedded Reinforcing Mesh
- Auro Natural Breathable Paint

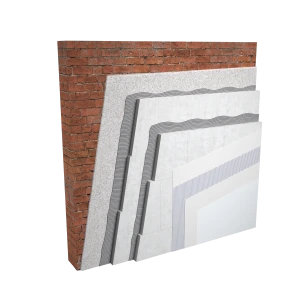

Existing Brick Wall
42mm Diasen Diathonite Thermactive.037 Lime and cork based insulating plaster
Redstone Clima Redboard Pro Adhesive Mortar Adhesive mortar for use on Clima Redboard Pro
50mm Redstone Clima Redboard Pro Interior calcium silicate thermal insulation, mould prevention and moisture control board
Redstone Clima Redboard Pro Adhesive Mortar Adhesive mortar for use on Clima Redboard Pro
50mm Redstone Clima Redboard Pro Interior calcium silicate thermal insulation, mould prevention and moisture control board
Redstone Clima Redboard Pro Smooth Finishing Plaster for use on Clima Redboard Pro boards with embedded reinforcing mesh
Auro Natural Breathable Paint
A high-performance A1-rated build-up for maximum thermal improvement. A space-saving A1-rated internal insulation solution for minimal build-up requirements. High-performance internal wall insulation system designed to improve thermal comfort while maintaining full breathability and moisture safety. It is suitable for use on external solid masonry walls, window reveals, soffits, and at internal wall junctions on internal walls to reduce thermal bridging. It offers a stable, breathable and fire-safe solution for retrofit projects seeking improved energy performance without compromising the health of the building fabric.
- Existing Brick Wall
- 42mm Diasen Diathonite Thermactive.037
- Redstone Clima Redboard Pro Adhesive Mortar
- 50mm Redstone Clima Redboard Pro Calcium Silicate Board
- Redstone Clima Redboard Pro Adhesive Mortar
- 50mm Redstone Clima Redboard Pro Calcium Silicate Board
- Redstone Clima Redboard Pro Smooth Finishing Plaster (Luno) with embedded Reinforcing Mesh
- Auro Natural Breathable Paint

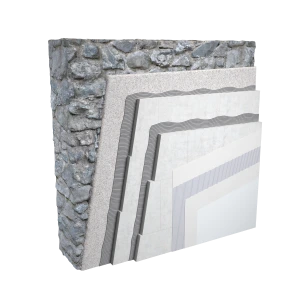

Existing Stone Wall
42mm Diasen Diathonite Thermactive.037 Lime and cork based insulating plaster
Redstone Clima Redboard Pro Adhesive Mortar Adhesive mortar for use on Clima Redboard Pro
50mm Redstone Clima Redboard Pro Interior calcium silicate thermal insulation, mould prevention and moisture control board
Redstone Clima Redboard Pro Adhesive Mortar Adhesive mortar for use on Clima Redboard Pro
50mm Redstone Clima Redboard Pro Interior calcium silicate thermal insulation, mould prevention and moisture control board
Redstone Clima Redboard Pro Smooth Finishing Plaster for use on Clima Redboard Pro boards with embedded reinforcing mesh
Auro Natural Breathable Paint
A high-performance A1-rated build-up for maximum thermal improvement. A space-saving A1-rated internal insulation solution for minimal build-up requirements. High-performance internal wall insulation system designed to improve thermal comfort while maintaining full breathability and moisture safety. It is suitable for use on external solid masonry walls, window reveals, soffits, and at internal wall junctions on internal walls to reduce thermal bridging. It offers a stable, breathable and fire-safe solution for retrofit projects seeking improved energy performance without compromising the health of the building fabric.
- Existing Stone Wall
- 42mm Diasen Diathonite Thermactive.037
- Redstone Clima Redboard Pro Adhesive Mortar
- 50mm Redstone Clima Redboard Pro Calcium Silicate Board
- Redstone Clima Redboard Pro Adhesive Mortar
- 50mm Redstone Clima Redboard Pro Calcium Silicate Board
- Redstone Clima Redboard Pro Smooth Finishing Plaster (Luno) with embedded Reinforcing Mesh
- Auro Natural Breathable Paint
