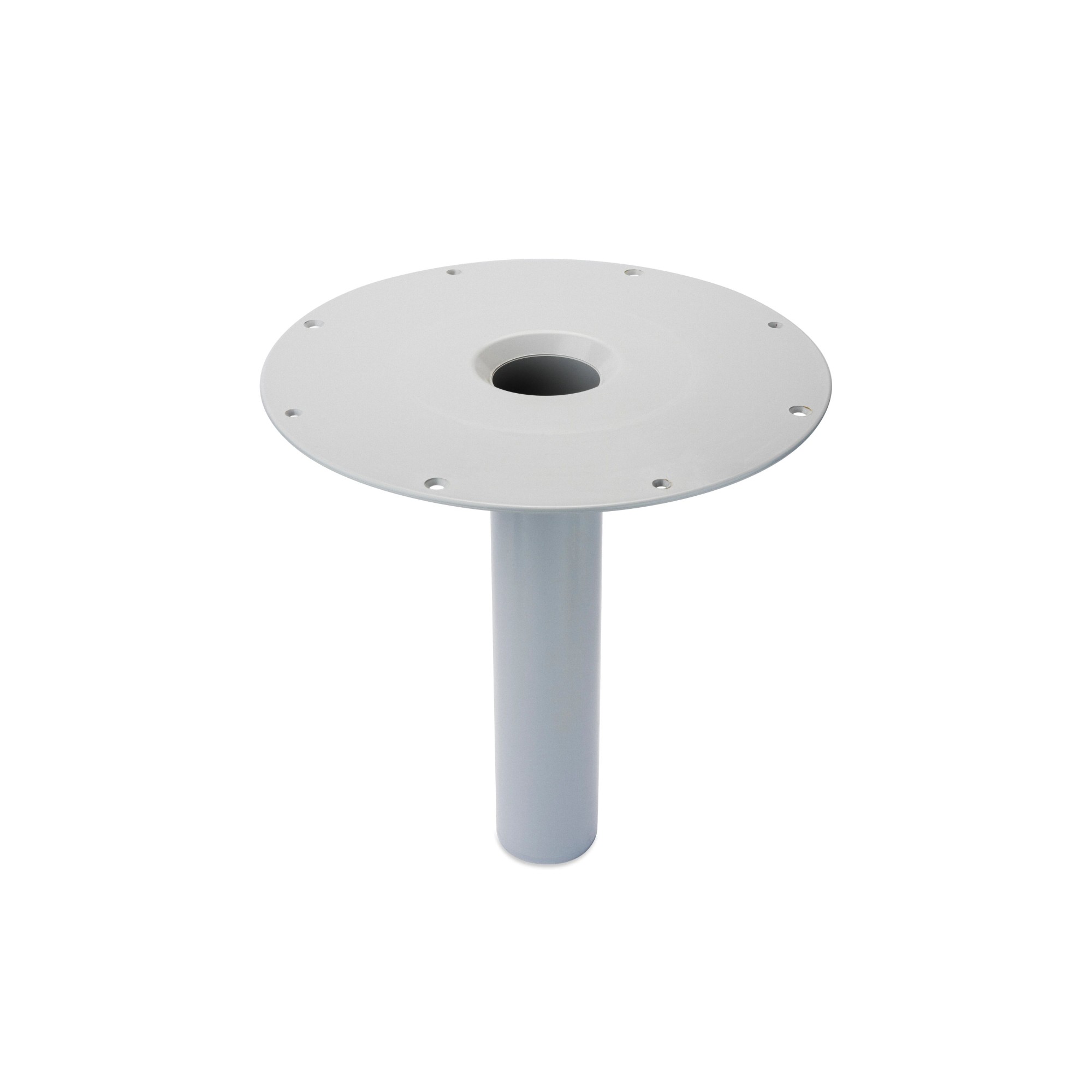

Pro Clima Adhero Floor Drain
Product Overview
Main purpose
To provide vertical drainage through Solitex Adhero 3000 covered floors or roof structure to prevent water damage during the construction phase.
Use it on
Adhero 3000 covered CLT intermediate floors or roofs during the construction phase
Overview
The Adhero Floor Drain affectively helps drain water from CLT roof or floor surfaces that have been protected with Adhero 3000. It is used to quickly make a temporary vertical drain through roofs and floors during the construction phase.
Where to use it
The Adhero floor drain should be fitted into a 70mm hole in the ceiling or flat roof structure of a CLT building that has been weather protected with Solitex Adhero. It should be installed connected to a pipe or tube system to safely direct water out of the building.
What it does
The floor drain provides an easy-to-install watertight temporary drainage point on flat roofs and floors. When drainage pipes or tubes are connected to it and sealed with Tescon Vana, it prevents pools of excess water to improve safety and fully protect the CLT from water damage.
Why we love it
The Pro Clima Adhero Floor Drain is a simple design and can be quickly installed to provides dependable drainage after drilling through the Solitex Adhero and structure beneath.
- Quick installation
- Dependable drainage
- Watertight sealing
- Time saving
- No water damage
Simply drill through the CLT panel.
Reliably guides rainwater away from the building preventing buildup of water that may cause water damage along the walls.
The drain can be easily removed once the construction is completed.
Questions
There are currently no questions and answers published for this product
Technical Details
Key Technical Data
Installation Guide
To prepare, cut through the Pro Clima Solitex Adhero layer and CLT base where the drain will go. Keep the area clean, dry, and grease-free for a strong seal.

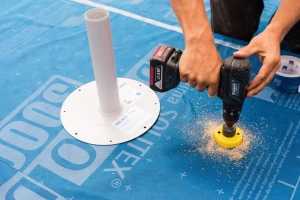

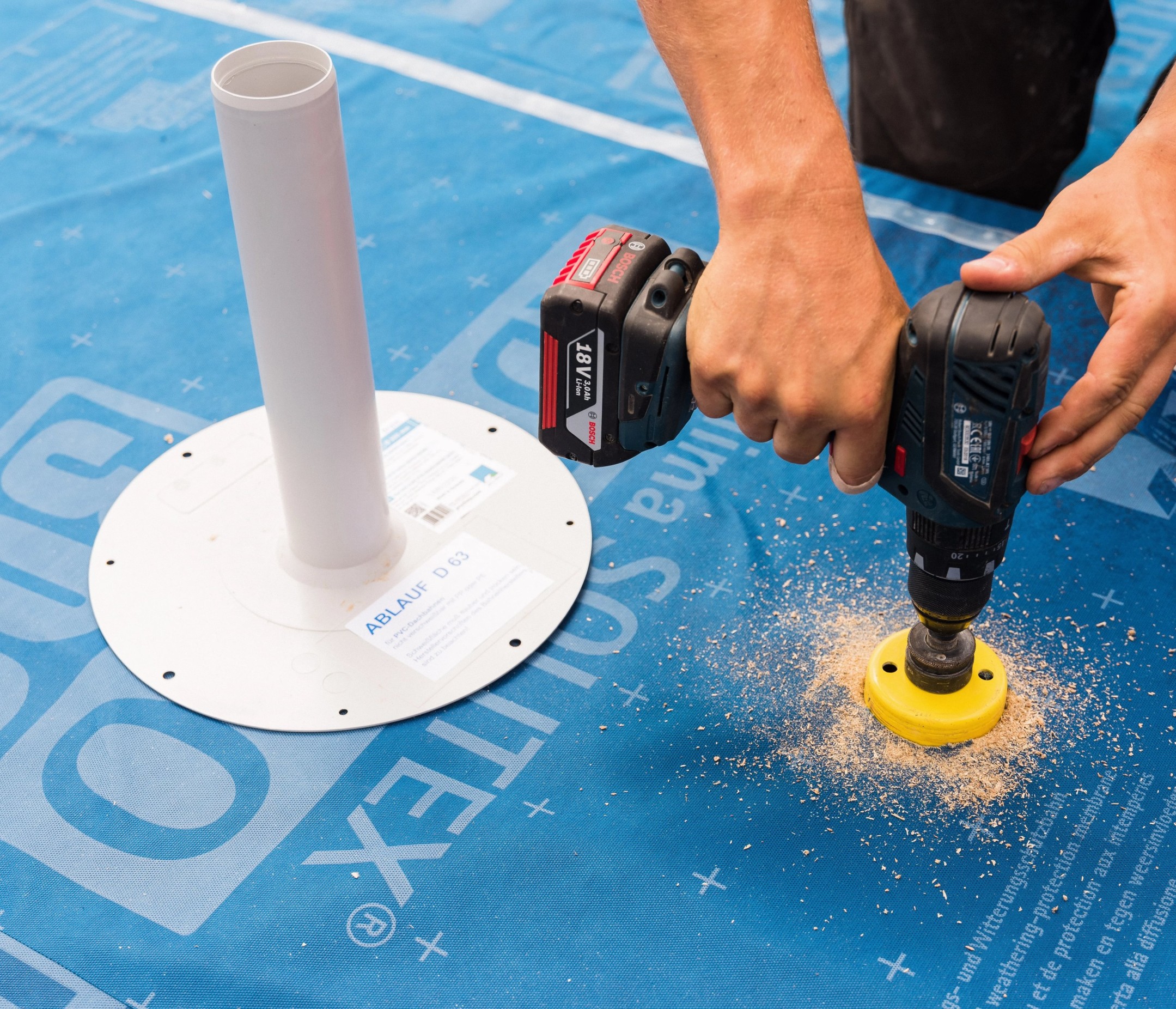

Select the lowest point of the floor and drill a hole through the membrane and wood using a 70 mm (2¾") hole saw. Remove all debris and wipe the area clean and dry, as tape won’t adhere to dust, oil, or silicone.

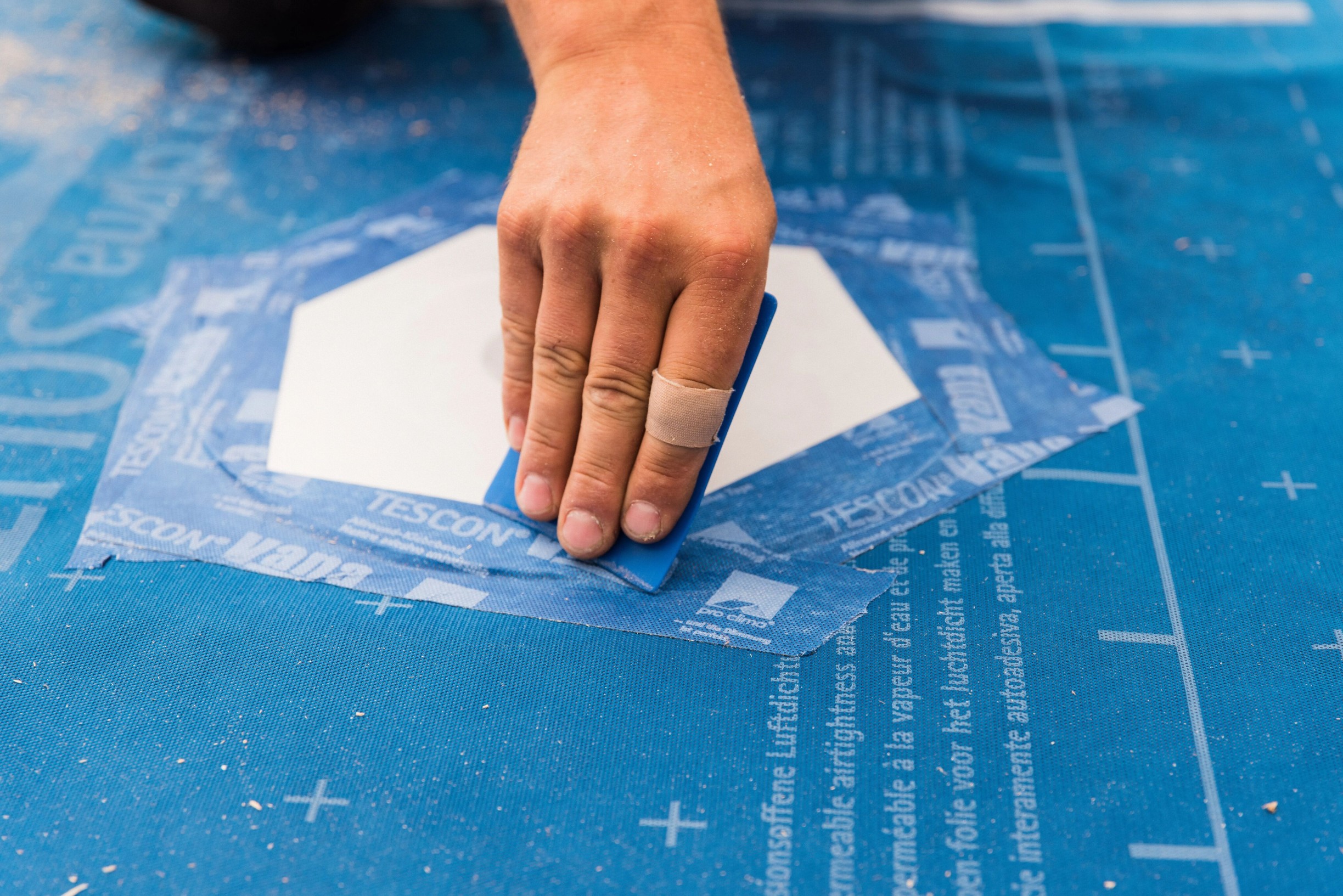

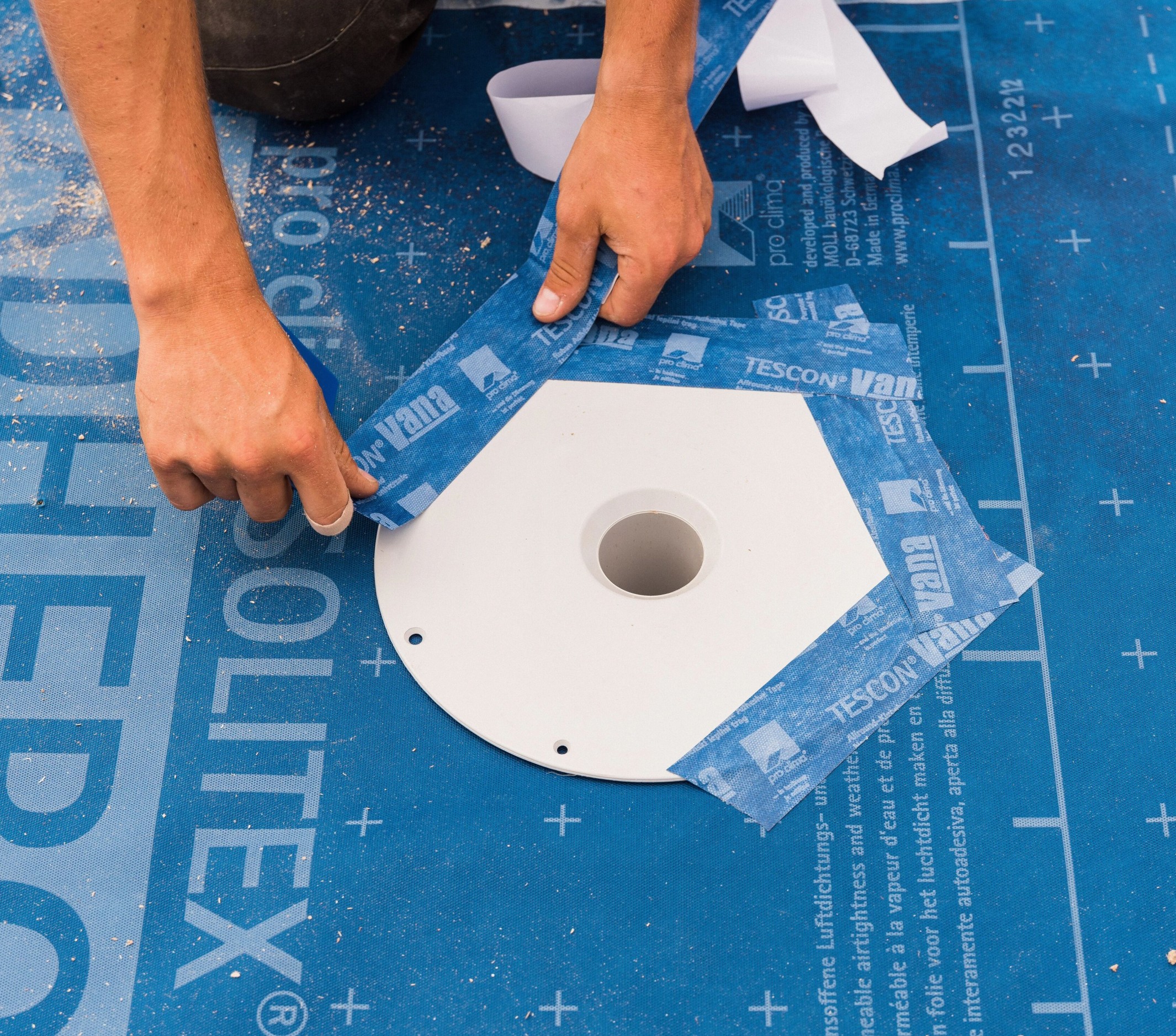

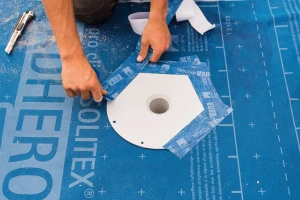

Insert the drain from above, attach the pipe below and secure with a pipe clamp or cable tie. (Optional: screw into place). Then seal around the flange with Pro Clima Tescon Vana tape – half on the drain and half on the membrane.
Make sure to press firmly with the Pressfix tool to remove bubbles and ensure full contact.
To check the adhesion and stability, pour water to confirm that there are no leaks.
When the project is near completion and the floor drain needs to be removed, cut the tape, lift the drain, and patch the hole with Solitex Adhero sealed with Tescon Vana tape.
Hints and tips
A clean, dry surface ensures a strong seal. Using the Pressfix tool, press the tape firmly, especially on uneven surfaces.
