Contemporary Vernacular Passive House, Co. Cavan

This naturally insulated certified Passive House in the rolling drumlin hills of County Cavan belongs to our Group Technical Manager, Niall Crosson.

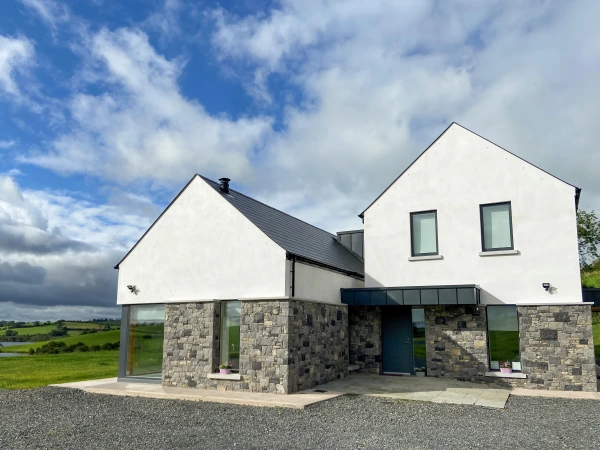

Cavan Passive House Side View

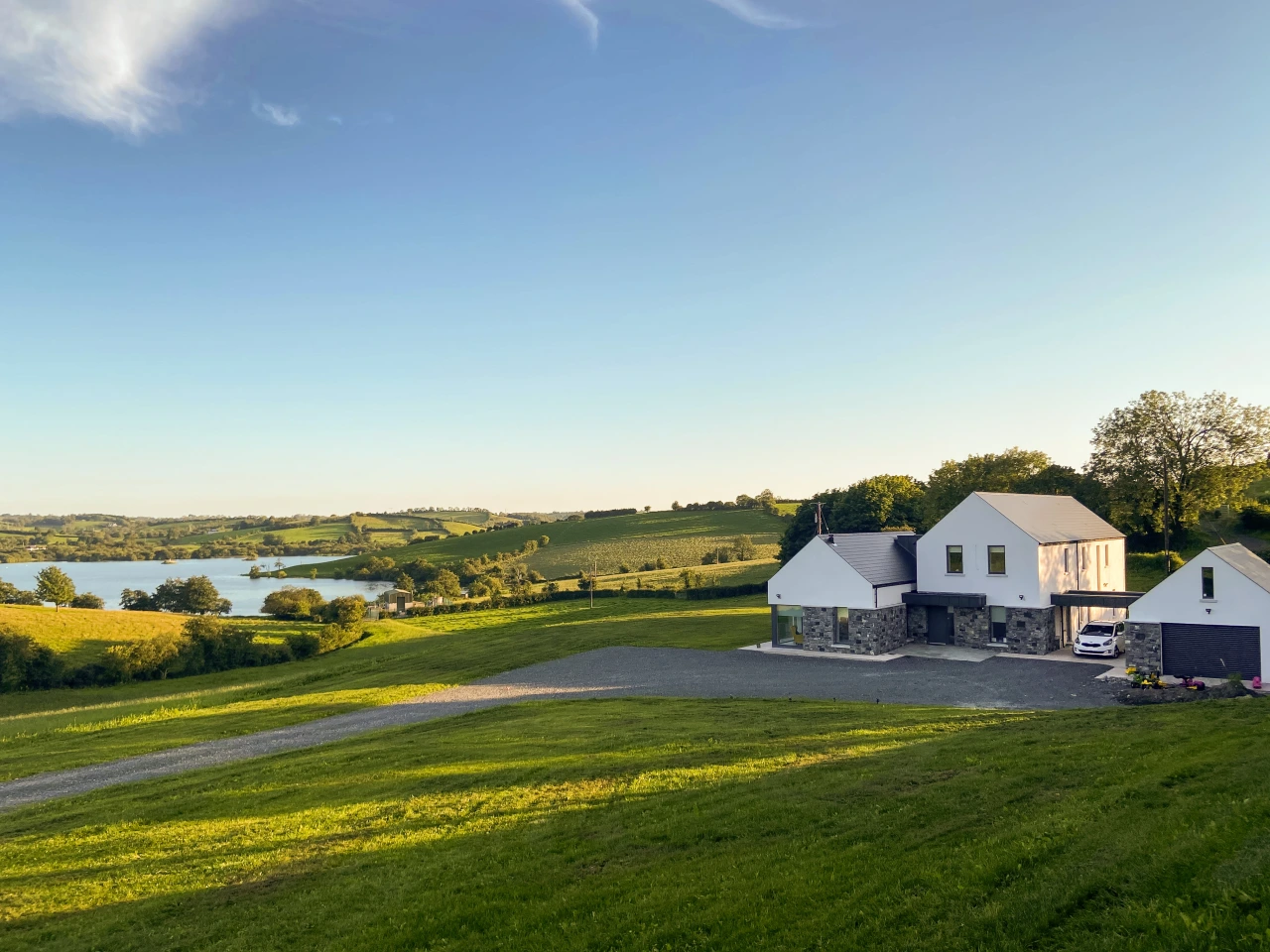

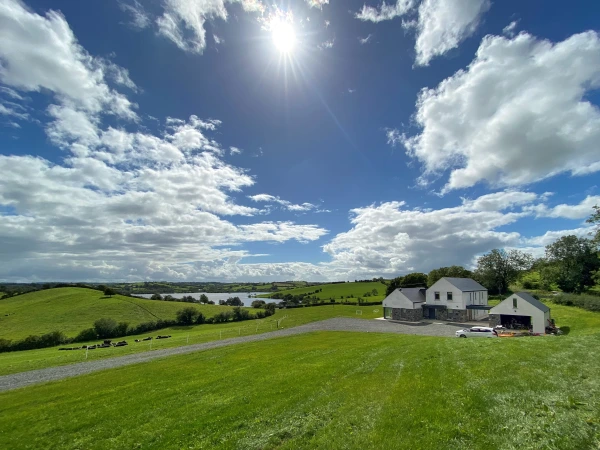

Cavan Passive House viewed from a distance just after completion

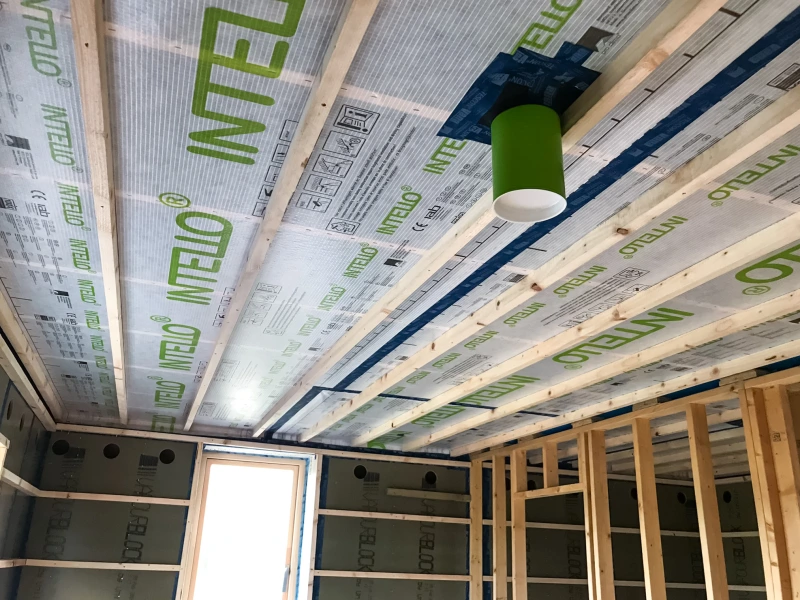

Intello airtight membrane on ceiling with pipe fitted with airtight grommet

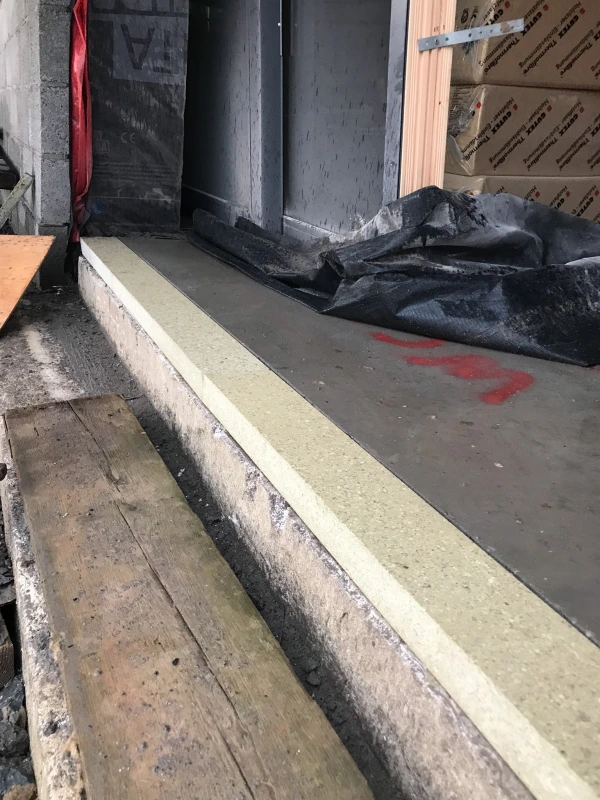

Bosig structural insulation board fitted at door opening

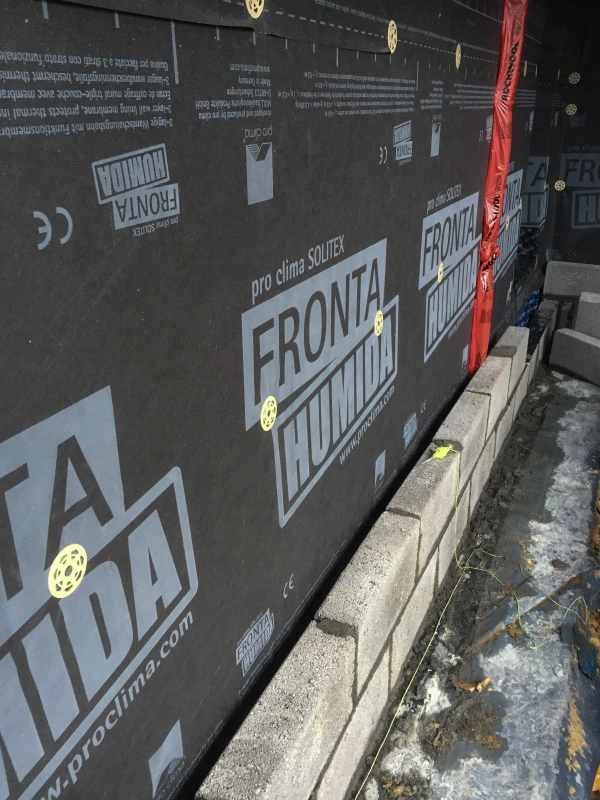

Fronta Humida applied to timber frame with first course of external blockwork

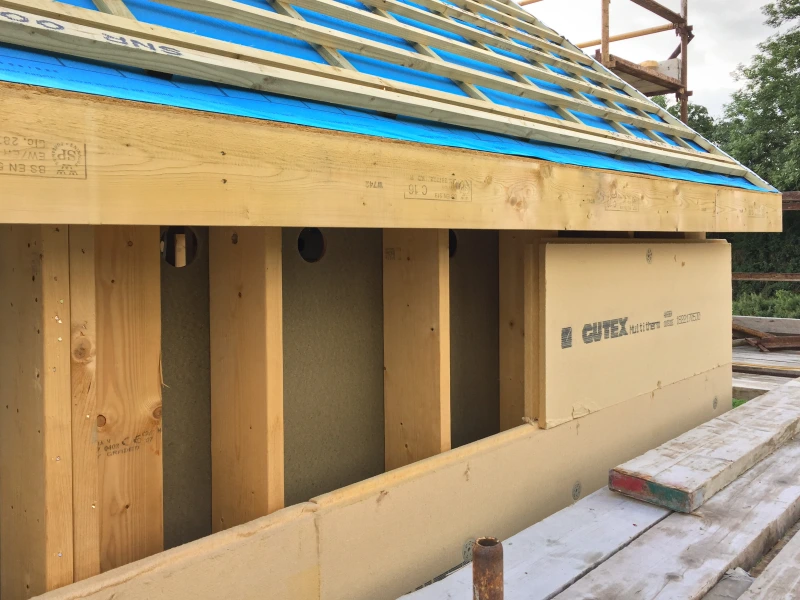

Gutex Multitherm on outside of timber frame

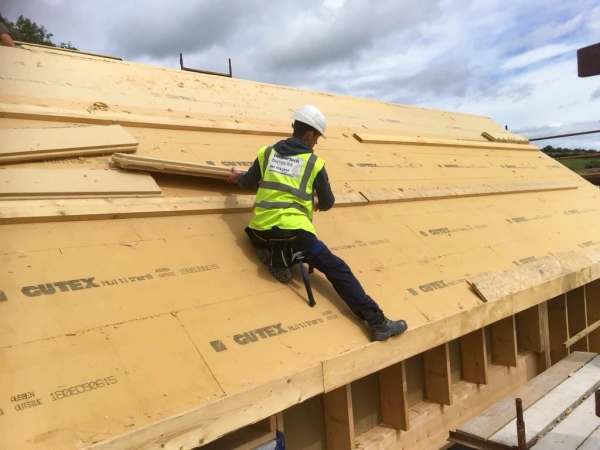

Gutex Multitherm wood fibre insulation over rafters

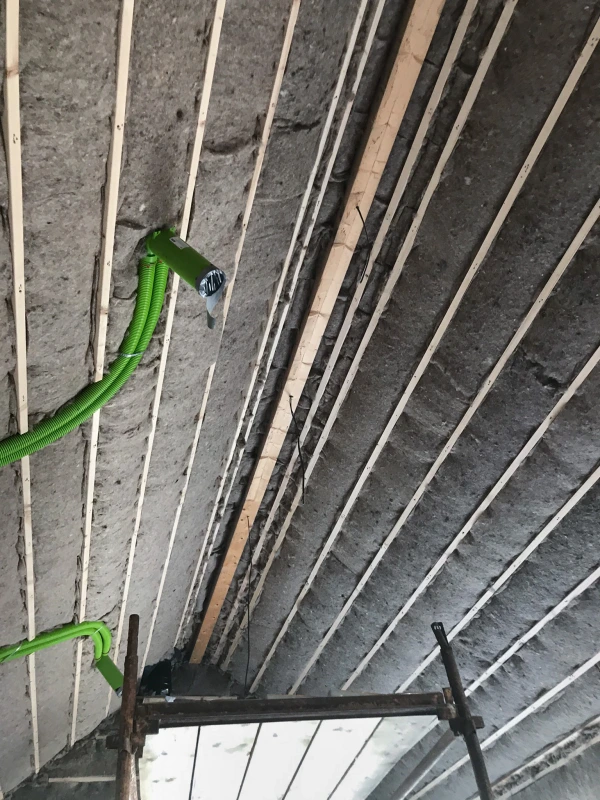

Thermafleece CosyWool sheepswool insulation fitted between joists on ceiling

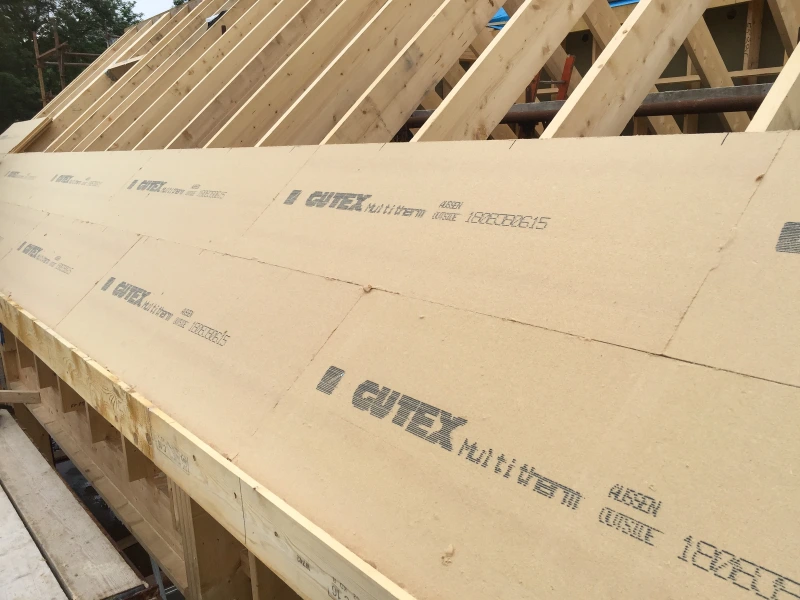

Gutex Multitherm wood fibre insulation fully fitted on roof

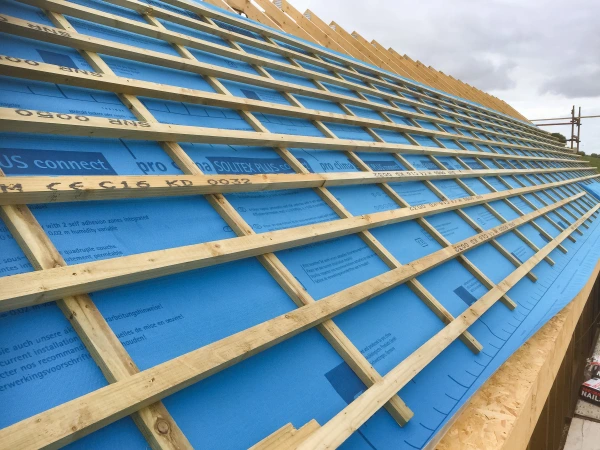

Solitex Plus windtight membrane beneath roof tiles

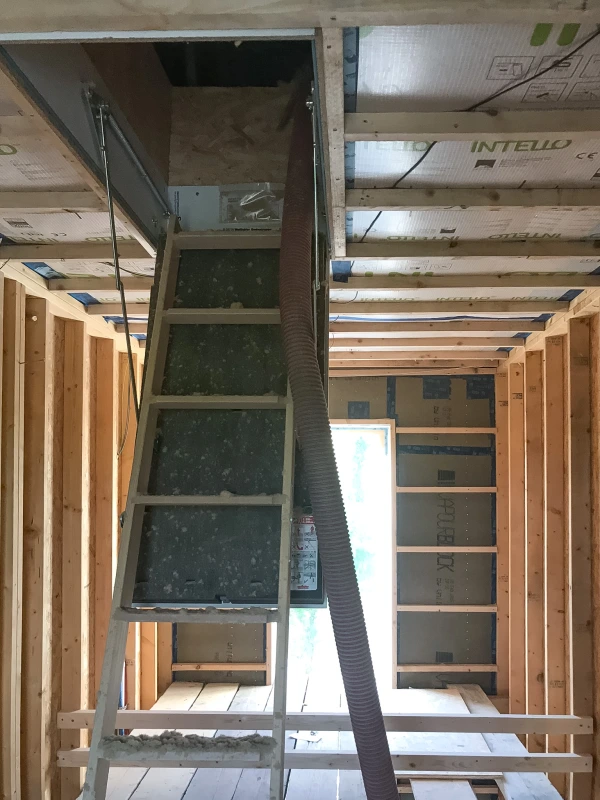

Wellhofer attic hatch accessing roof space

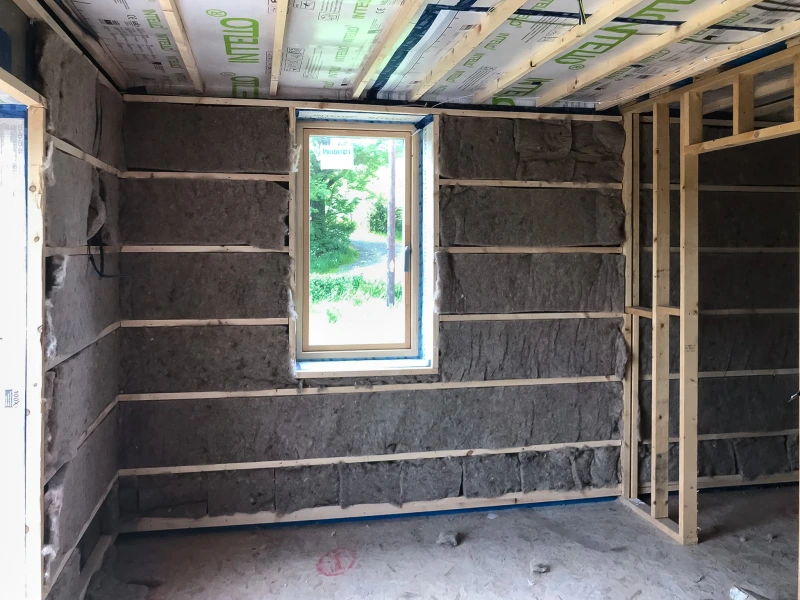

Thermafleece sheeps wool insulation fitted between studs

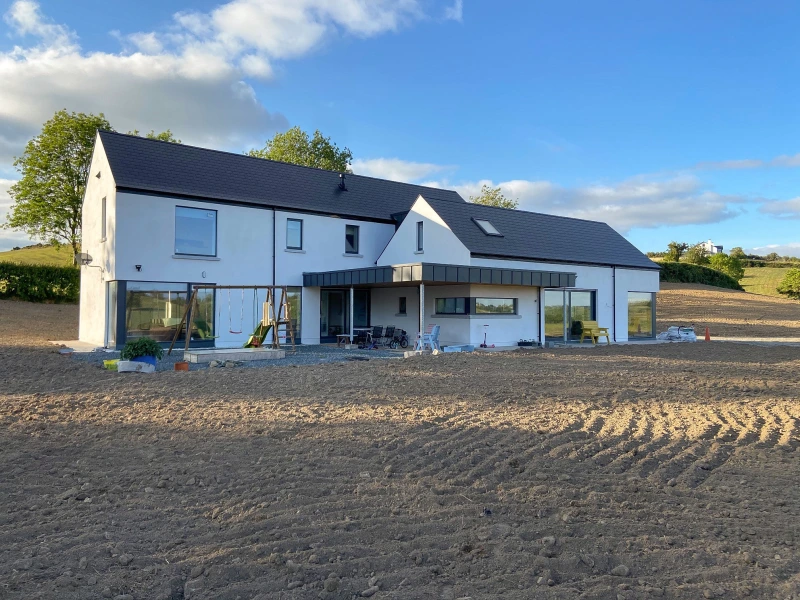

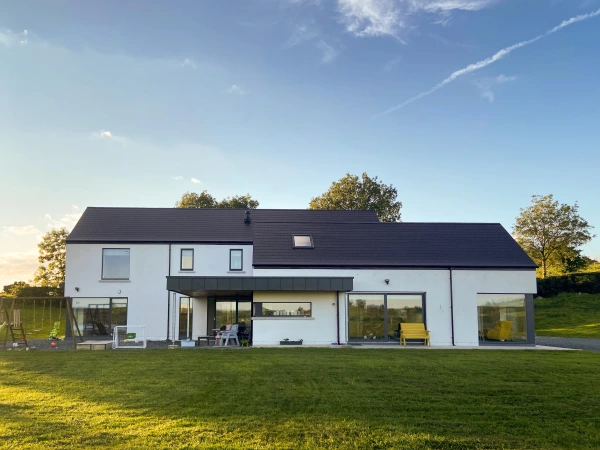

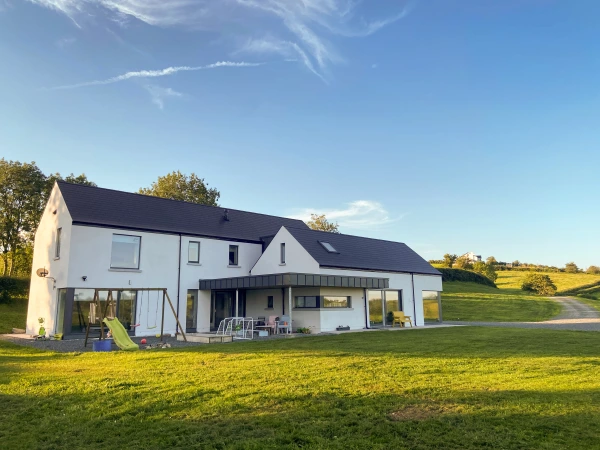

Cavan Passive House rear elevation
Cavan Passive House in the evening time with view over lake
Quadruple glazing in passive house

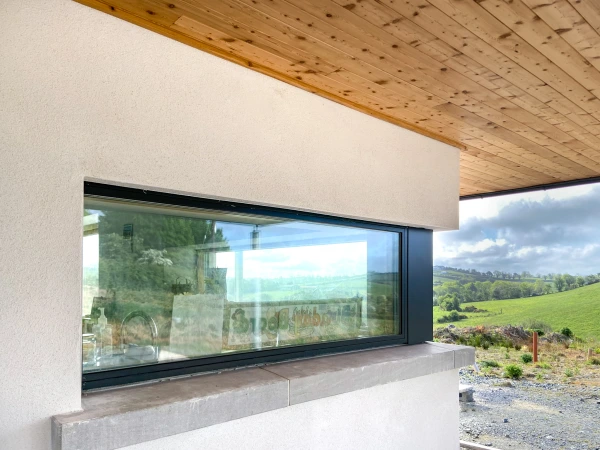

Glazing on kitchen window
Primary Energy Requirement
95 kWh/m²/year
Air Pressure Test Result
0.39 AC/H @ 50 Pascals
Space Heating Demand
11 kWh/m²/year
Heating load
10 W/m²
Treated Floor Area
260m²
U Value - Exterior wall
0.11 W/m²K
U Value - Roof
0.1 W/m²K
U Value - Ground floor
0.1 W/m²K
U Value - Windows (average)
0.8 W/m²K
Architect
Niall Smith Architects
Installer (Timber Frame)
Timbertech Homes
Installer (Airtightness)
Clíoma House
Installer (Gutex Thermofibre)
Clíoma House
