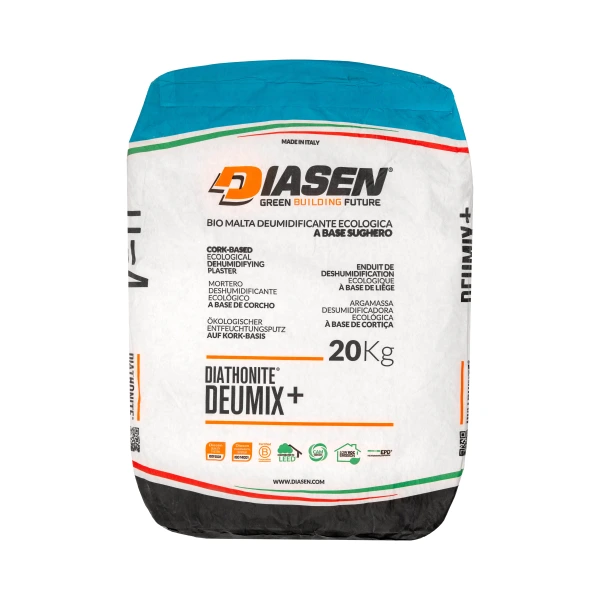

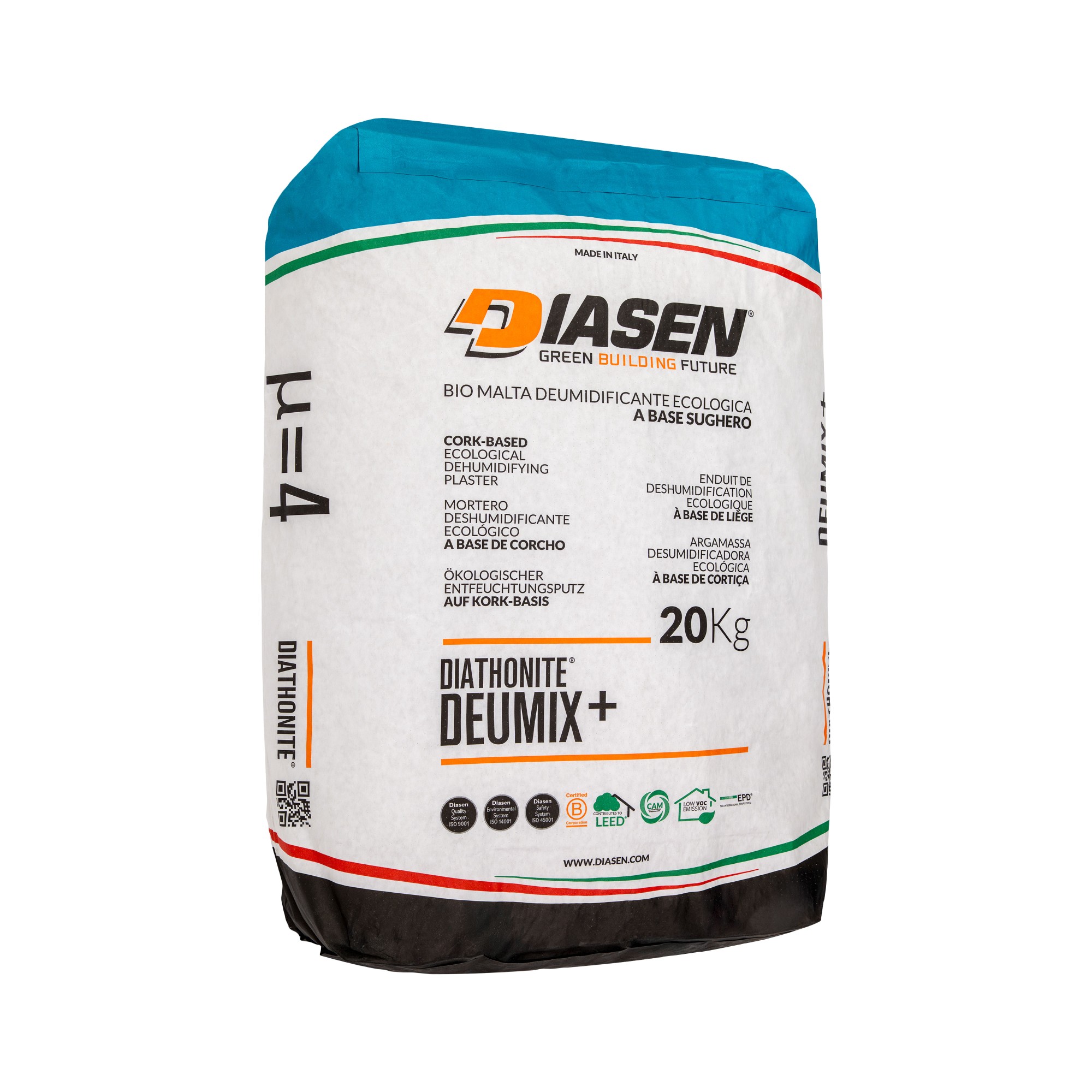

Diathonite Deumix 20kg bag
Diathonite Deumix 20kg bag
Diathonite Deumix 20kg bag

Diasen Diathonite Deumix Plus

20kg Bag

Product calculator

The calculation is based on spray applying the plaster to a smooth level wall. For hand application with a trowel, add approx. 15% to the estimate below. The calculation is for guidance only and does not include material needed to level (dub out) the wall.
m2 of Diasen Diathonite Deumix Plus
mm thickness
  • Product Overview
  • Technical Details
  • Downloads
  • Installation guide

Product Overview

Main purpose

Restoration and moisture management of walls affected by rising damp and salt deposits. Also to speed up drying of residual moisture in the wall after treatment for damp.

Use it on

Internal or external solid stone or masonry walls where rising damp and salt deposits can occur.


Diathonite Deumix+ is a robust thermal insulating plaster and salt inhibitor made from natural Hydrated lime, NHL 5 binder, Clay, Cork and Diatomaceous earth. It is breathable and capillary active with excellent insulation properties.

This plaster is ideally suitable for masonry walls where high levels of moisture, rising damp and salt deposits are problematic. Deumix+ effectively deals with excess moisture in the wall, regulates humidity and helps prevent salt deposits.

Where to use it

Deumix+ plaster can be used on solid stone or masonry walls either internally or externally. Suitable walls are typically those where rising damp, external rain, condensation, excess moisture or salt deposits (efflorescence) are present. It is also ideal to be applied on top of Watstop tanking plaster in basements where some or all of the wall is underground. It is mainly used in the restoration and thermal insulation of damp masonry walls especially in older or historic/listed buildings. It can also greatly speed up the drying of walls that have recently had a damp treatment so any residual dampness can dry as quickly as possible.

It can also be used to level uneven walls before installing Gutex Thermoroom wood fibre insulation or Calsitherm Climate Boards. When used as the only plaster for the wall, it should always be covered with Argatherm finishing plaster.

Before you start your project, it is essential to investigate and fix any existing damp or moisture related issues in the wall; please see our installation guide for full details.

For optimal performance and longevity of any internal wall insulation system, it is crucial to evaluate the suitability of the wall and rectify any problems before installation begins. Please read our guide: “How to prepare traditional solid walls for IWI Installation” to ensure you achieve the best results.

What it does

Diathonite Deumix+ readily absorbs moisture from the wall to help regulate and deal with rising damp. It’s breathable and capillary active properties transport excess moisture or dampness rapidly out of the wall to the surface where it quickly and harmlessly evaporates. The excellent thermal insulation and moisture control abilities effectively prevent condensation and subsequent mould growth.

Why we love it

Diathonite Deumix+ is made from natural materials: Hydrated lime, NHL 5 binder, Clay, Cork and diatomaceous earth. NHL5 is a strong and more robust type of lime. These breathable materials are highly porous and capillary active and work together to absorb and release moisture and humidity without being damaged. They provide thermal insulation and sound insulation, prevent condensation/mould, and form a robust yet elastic (non-cracking) wall plaster. It also contains a salt inhibitor to prevent deposits of salt occurring on the wall.

Coverage for 20mm thick layer (on level, smooth walls):

Hand applied: approximately 10.00kg per square metre. Each bag covers 2 square metres.

Sprayed on by machine: approximately 8.80kg per square metre. Each bag covers 2.27 square metres.


  • Unaffected by cycles of high and low moisture
  • Capillary active & breathable
  • Prevents salt deposits (efflorescence)
  • Insulator
  • Suitable for uneven walls
  • Used on whole wall or effected areas only
  • Non combustible


  • Robust and durable in problematic walls such as cellars, basements or walls affected by poor drainage or severe weather cycles.
  • Allows moisture caused by rising damp to pass through the wall helping it to dry out
  • Prevents unsightly salt stains and manages moisture by applying a minimum thickness of 25mm
  • Ensures full compatibility with other breathable solutions used on the wall, so ideal for heritage buildings
  • Provides thermal insulation to the wall, keeping you warm and reducing energy bills.
  • Spray or trowel applied, no special training required.


There are currently no questions and answers published for this product

Ask A Question

Technical Details

Key Technical Data

Technical Datasheet

  • Download

Material Safety Datasheet (MSDS)

  • Download

Environmental Product Declaration (EPD)

  • Download

Declaration of Performance (DOP)

  • Download
  • Download

Installation Guide

  • Download

Brand/Manufacturer Brochure

  • Download

Featured Article

  • Download

Installation Guide

Find an installer

Before You Start

Before installing any internal wall insulation, it is essential to investigate and fix any existing damp or moisture related issues in the wall. Even though our internal wall systems are breathable and provide optimal protection against condensation, persistent damp issues must be resolved first. A wet wall is a cold wall, so preparation to remove or reduce external sources of moisture is key to achieving optimum results.

Once damp issues have been resolved, the wall should be allowed to dry thoroughly and re-assessed for suitability of internal wall insulation.

Any existing gypsum plaster on the internal side of the wall should be removed first to reveal the stone or masonry underneath.   This ensures the wall will be fully breathable and allows the Diathonite to work to its full potential.  It also provides a reliable key for maximum adhesion of the Diathonite to the wall.

These are the main considerations before commencing any work:

  • Is there evidence of moisture in the walls?
  • Is there any evidence of condensation, fungus or mould growth on the internal walls?
  • Is there a functioning damp proof course (DPC)?
  • Is there sufficient ventilation in the property?
  • Is the external ground level higher than the floor level inside?
  • Are there any structural defects in the external walls?
  • Is guttering, flashings and external pipework in good condition?
  • Is the external render, pointing or cladding in good condition and providing adequate weather protection?
  • Is the external finish suitable for the severity of wind driven rain exposure?
  • Are the timber joists embedded in external walls free from infestation and rot?
  • Has the building ever been flooded?
  • If you chose not to remove existing plaster on the wall, is this plaster fully compatible with the insulation system being used?  (Ideally, it would need to be lime-based, any existing gypsum plaster on the internal side of the wall should be removed first)

How to Install

Deumix+ should be installed when the temperature is between 5°C and 30°C.  The surface should be free of debris or loose sections. Any mould should be removed with a natural mould remover such as Auro Mould Eliminator and salt deposits should be cleaned off prior to application.  Any paint finishes must also be removed from the surface before applying Deumix+ to ensure successful adhesion and breathability is maintained.

For the best moisture control performance, all existing plasters or renders should be removed and Deumix+ should be applied directly to the stone or brick.

On smooth concrete or when applying over existing plaster, the surface must be primed with Diasen Aquabond first.

Add 11-12 litres of water per bag of Deumix+.  This is an indicative amount, the consistency can be changed to suit the conditions or surface type by adding more or less water. The mixture should be foamy once it is combined.

For application by hand, any un-primed surface should be thoroughly wetted one hour before application. This ensures Deumix+ dries at the correct rate for maximum strength, especially where the Deumix+ is exposed to the sun during application.

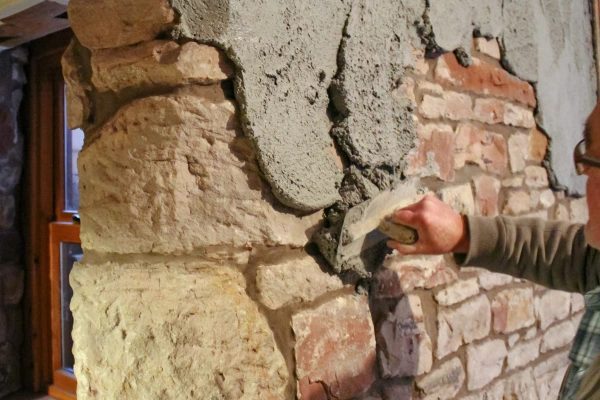

Deumix being appiled with a hand trowel to brick facing
Deumix being appiled with a hand trowel to brick facing

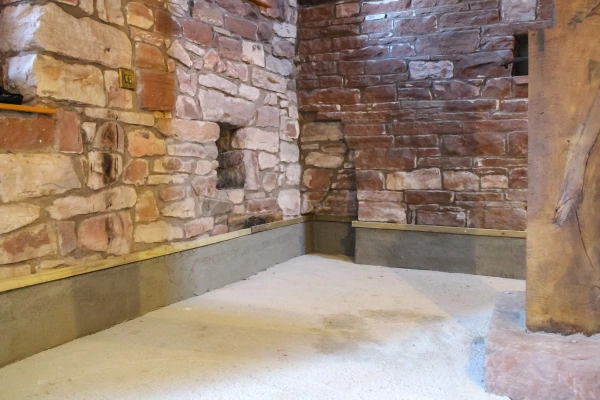

Deumix finish to the base of an internal wall that has been smooted with a flat edge
A flat level edge is used to remove high spots on Deumix

Deumix+ is typically applied 25mm thick either by hand trowel or by spraying with a plastering machine. The minimum thickness possible is 20mm. Greater thicknesses should be applied in multiple coats 20-25mm at a time. Each coat should dry for 12-24 hours and appear visibly lighter in colour before the next coat is applied. Wet the surface again thoroughly between each coat.

When smoothing the surface, do not press hard or compress the Deumix+ as this affects the porosity and reduces the effectiveness of the product. A flat level surface is obtained by scraping the surface to remove high spots with a long straight edge.

When applied externally, Deumix+ must be protected from frost, direct sunlight and winds while it dries. In warm weather, or in very sunny or windy conditions, the Deumix+ must be wetted 2 or 3 times per day for the next 2-3 days to regulate the drying and prevent cracks.

The finished Deumix+ installation must only be painted with breathable paint, Diasen Decork. Non-breathable paints prevent Deumix+ from working effectively.

Hints and Tips

All application/yield figures quoted are based on application to a smooth level surface. They are for guidance only and do not include material required to level (dub out) walls.

During warm weather, apply Deumix+ later in the day when the sun is less intense. Check weather forecasts to try to avoid applying during periods of rain or frost, heavy fog or humidity levels higher than 70%.
